MicroFit MFHLP31613 Replaces the Stauff SE120G20B4

SE120G20B4
SE120G20B4
Representative product image Product image feedback

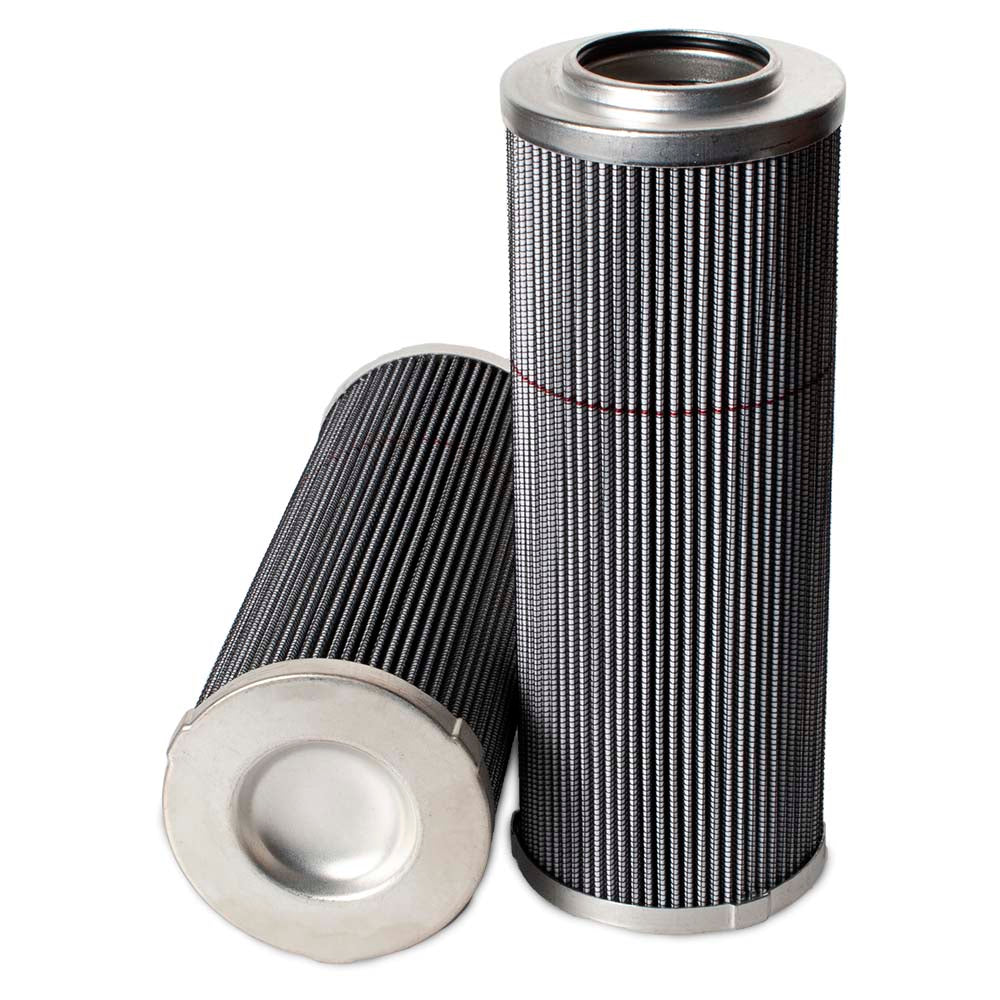

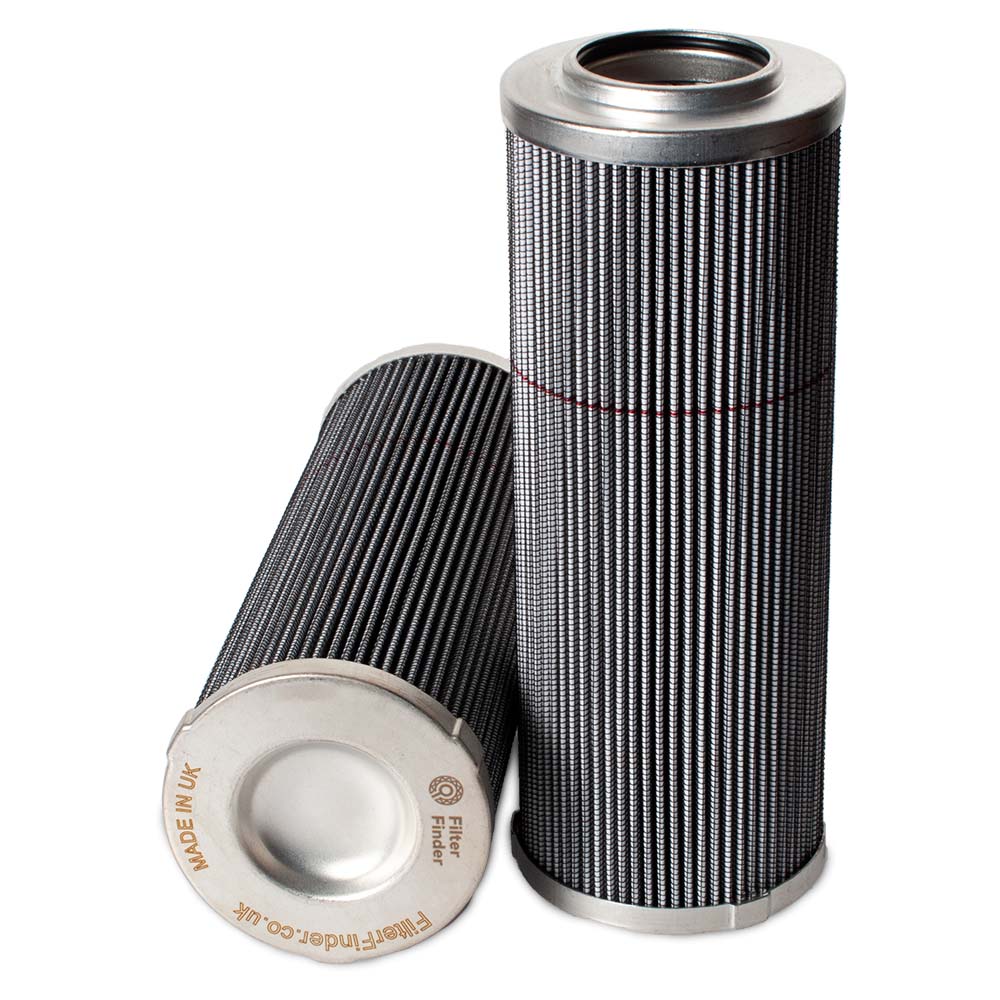

MicroFit® UltraGen III MFHLP31613 Pressure Filter | Replaces the Stauff SE120G20B4

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP31613 is the MICROFIT® approved replacement to the Stauff SE120G20B4. Engineered and manufactured in Great Britain the MFHLP31613

Price Match
¥918.00
1.92 kg
0.0013 m³
United Kingdom
8421.99.90
0.88 kg
0.0013 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31613 is the MICROFIT® approved replacement to the Stauff SE120G20B4. Engineered and manufactured in Great Britain the MFHLP31613

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 78.0 mm
Inner Diameter 43.2 mm
Length 209.0 mm
Δ Collapse Pressure 20 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Stauff Brand Logo

Same Fit-Form & Function

As the Genuine Stauff SE120G20B4

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Pressure Filter
Outer Diameter 78.0 mm
Inner Diameter 43.2 mm
Length 209.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 20 BAR
Seal Nitrile
Temperature Range -30 - +100°C
