Regular price ¥1,052.00
Unit price  per
0.69 kg
0.0018 m³
United Kingdom
8421.99.90
Shipping Terms

Description

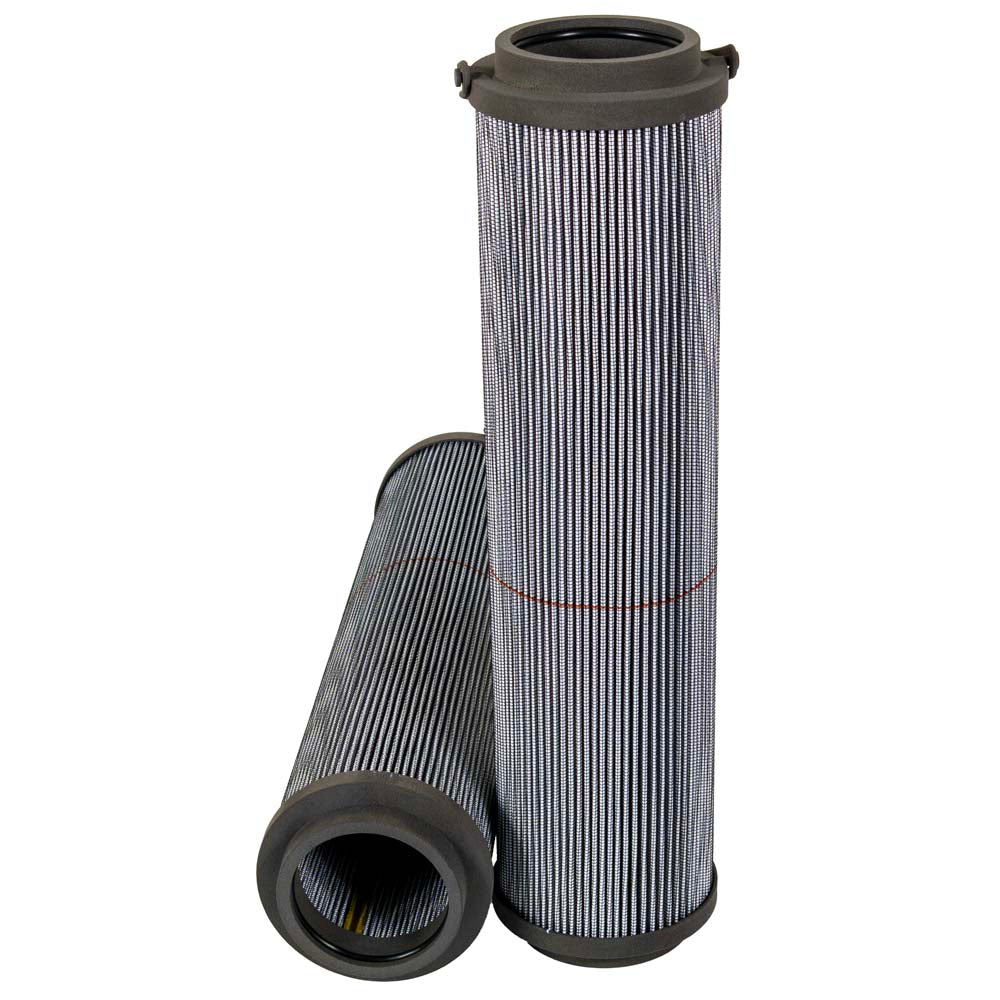

Genuine MICROFIT® UltraGen III MFHC60048 Coreless Filter. Engineered and manufactured in Great Britain the MFHC60048 is designed to meet or exceed the quality and performance of OEM quality standards, ensuring superior filtration performance and the longest possible filter life.

Building on over 50 years of filtration expertise, the UltraGen III series is the third generation of MICROFIT® filter media, delivering exceptional efficiency and reliability.

FilterFinder is an approved distributor of MICROFIT® filters. With expert product knowledge, dedicated support, and a large stock availability, FilterFinder ensures you receive the parts you need when you need them, every time.

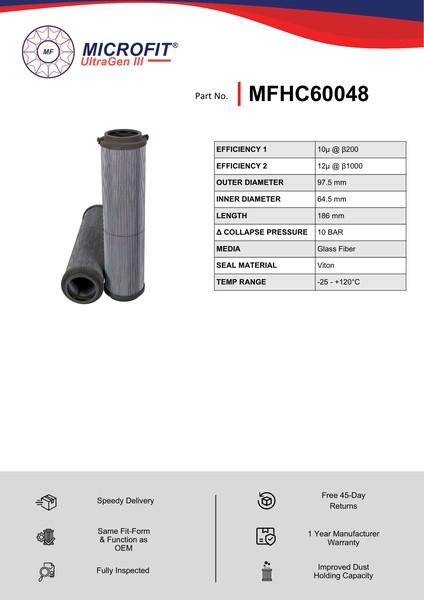

Specification

StyleCoreless Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 97.5 mm
Inner Diameter 64.5 mm
Length 186 mm
Δ Collapse Pressure 10 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Default Brand Logo

MicroFit Product

Genuine MicroFit MFHC60048

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Coreless Filter
Outer Diameter 97.5 mm
Inner Diameter 64.5 mm
Length 186 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Viton
Temperature Range -25 - +120°C
