MicroFit MFHR50055 Replaces the Main Filter MF0062351

MICROFIT MFHR50055
MICROFIT MFHR50055
Representative product image Product image feedback

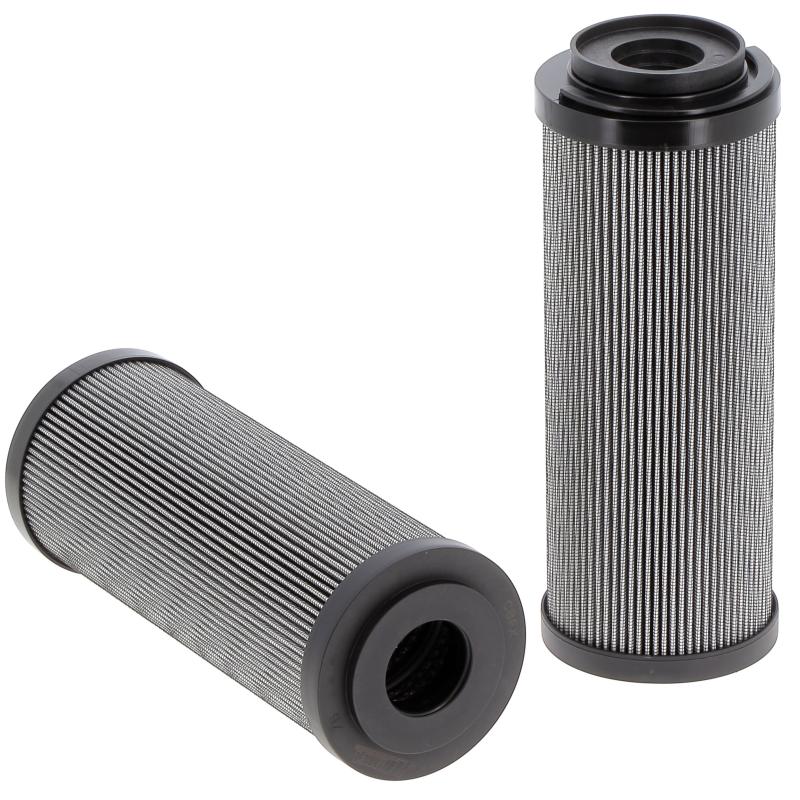

MicroFit® UltraGen III MFHR50055 Return Filter | Replaces the Main Filter MF0062351

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR50055 is the MICROFIT® approved replacement to the Main Filter MF0062351. Engineered and manufactured in Great Britain the MFHR50055

Price Match
¥476.00
2.42 kg
0.0028 m³
United Kingdom
8421.99.90
0.84 kg
0.0033 m³
France
8421.99.90
0.5 kg
0.0028 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR50055 is the MICROFIT® approved replacement to the Main Filter MF0062351. Engineered and manufactured in Great Britain the MFHR50055

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 99.0 mm
Inner Diameter 40.5 mm
Length 286.0 mm
Bypass Pressure 1.7 BAR bar
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Main Filter MF0062351

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Return Filter
Outer Diameter 99.0 mm
Inner Diameter 40.5 mm
Length 286.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
