Summary

Donaldson P171537 Alternative to the Hy-Pro HPMF3L8-10MB

HPMF3L8-10MB
HPMF3L8-10MB
Datasheet preview
Watch video
▶
Representative product image Product image feedback

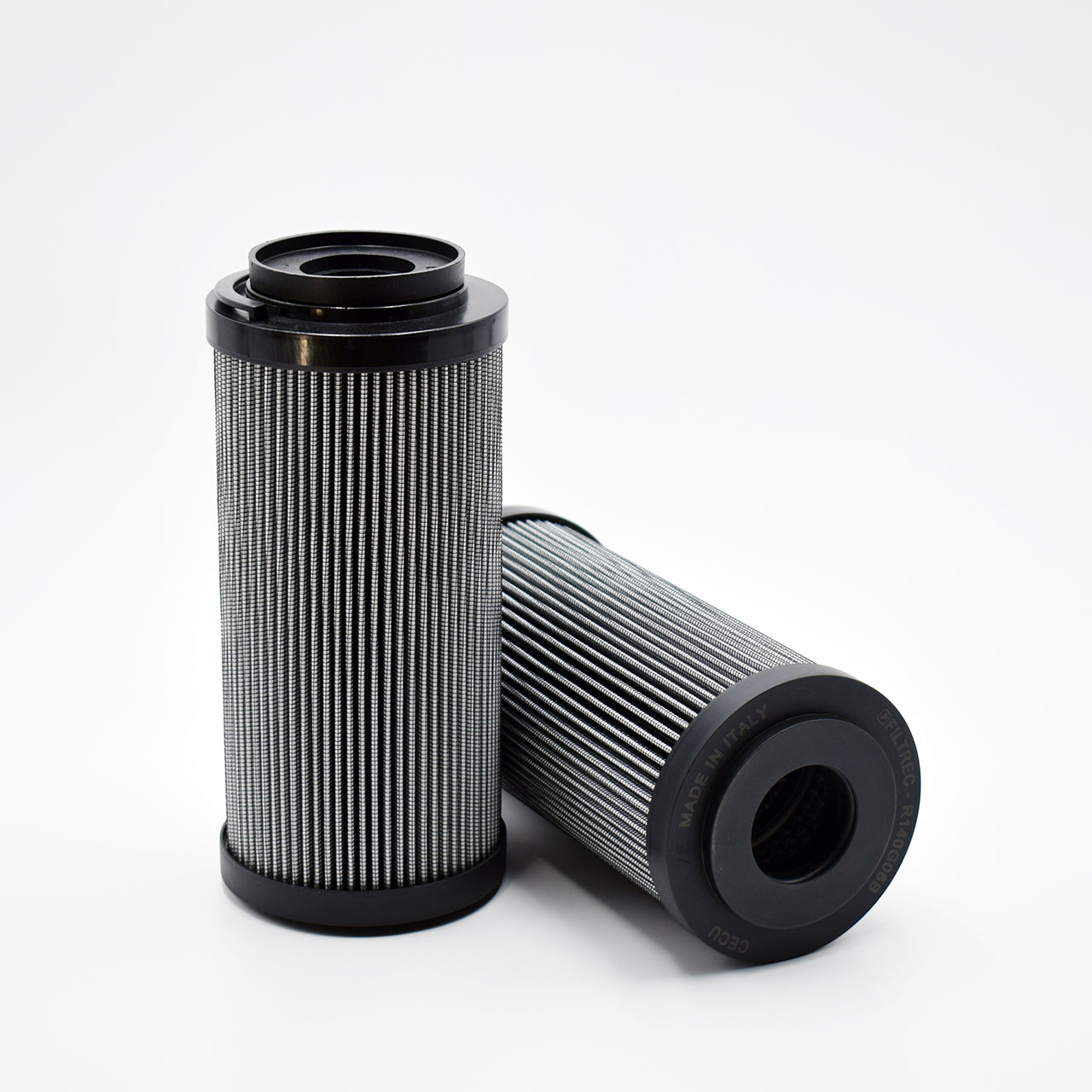

Donaldson P171537 Hydraulic Filter, Cartridge | Alternative to the Hy-Pro HPMF3L8-10MB

Brand: Donaldson
Price Match
¥358.00
0.64 kg
0.0027 m³
8421.29.80.90
0.7 kg
0.0024 m³
France
8421.99.90
0.7 kg
0.0024 m³
United Kingdom
8421.99.90
0.32 kg
0.0024 m³
Italy
8421.99.90
0.0024 m³
Germany
8421.99.90
0.53 kg
0.0022 m³
8421.23.00
Shipping Terms

Description

Genuine Donaldson P171537 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 99.0 mm
Inner Diameter 40.5 mm
Length 210.0 mm
Bypass Pressure 1.7 BAR bar
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C

Description

Genuine Donaldson P171537 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Cross References

To the genuine Hy-Pro HPMF3L8-10MB

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Donaldson Warranty

Donaldson Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Return Filter
Outer Diameter 99.0 mm
Inner Diameter 40.5 mm
Length 210.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
