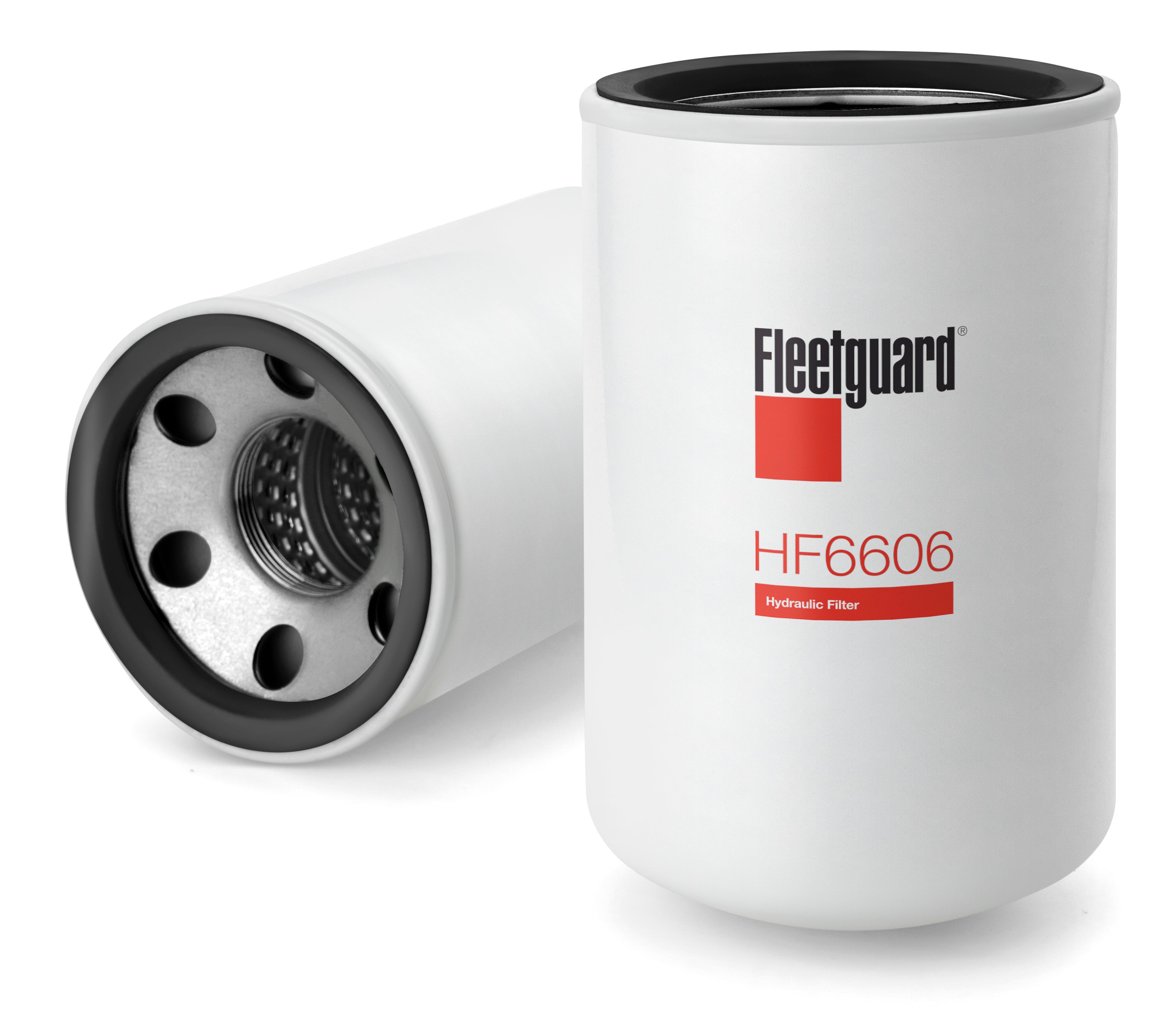

Fleetguard HF6606 Replacement Spin-On Filter

Fleetguard HF6606
Fleetguard HF6606
Representative product image Product image feedback

Fleetguard HF6606 Spin-On Filter

Brand: Fleetguard
Description

Fleetguard® HF6606 hydraulic spin-on filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Price Match
¥320.00
0.75 kg
0.0016 m³
486 pcs
United States
8421.99.90
0.73 kg
0.002 m³
486 pcs
United States
8421.29.80.90
0.7 kg
0.0021 m³
486 pcs
France
8421.99.90
486 pcs
Germany
8421.99.90
0.63 kg
0.0013 m³
486 pcs
Italy
8421.99.90
Shipping Terms

Description

Fleetguard® HF6606 hydraulic spin-on filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Specification

StyleSpin-On Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 96.0 mm
Length 145.0 mm
Thread1 1/2"-16 UN
Δ Collapse Pressure 17 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Fleetguard Brand Logo

Fleetguard Product

Genuine Fleetguard HF6606

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Spin-On Filter
Outer Diameter 96.0 mm
Inner Diameter
Length 145.0 mm
Media Type Glass Fiber
Flow Direction
Thread 1 1/2"-16 UN
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 17 BAR
Seal Nitrile
Temperature Range -30 - +100°C
