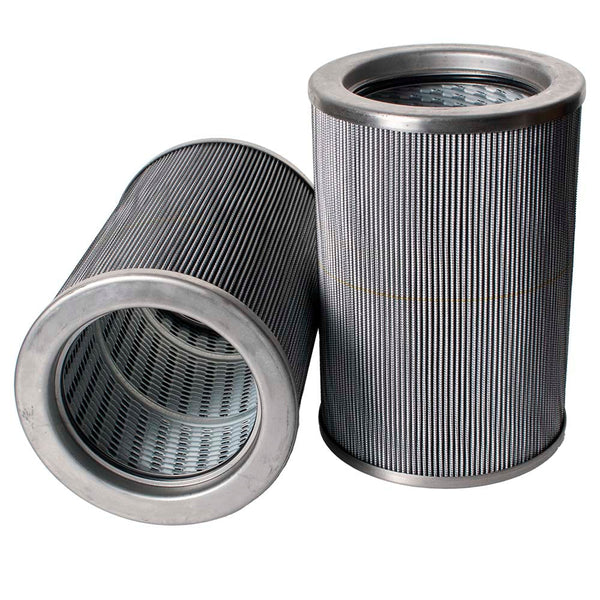

Fleetguard HF35181 Alternative to the Fleetguard HF30430

HF30430
HF30430
Representative product image Product image feedback

Fleetguard HF35181 Hydraulic Filters | Alternative to the Fleetguard HF30430

Brand: Fleetguard
Price Match
¥3,248.00
2.2 kg
0.014 m³
245 pcs
8421.23.00
4.37 kg
0.0055 m³
245 pcs
United Kingdom
8421.99.90
1.31 kg
0.0061 m³
245 pcs
United States
8421.29.80.90
1.99 kg
0.0055 m³
245 pcs
Italy
8421.99.90
1.98 kg
0.0055 m³
245 pcs
France
8421.99.90
Shipping Terms

Description

Fleetguard® HF35181 hydraulic cartridge filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 152.0 mm
Inner Diameter 105.5 mm
Length 207.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C

Description

Fleetguard® HF35181 hydraulic cartridge filter with synthetic media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Fleetguard Product

Genuine Fleetguard HF35181

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Return Filter
Outer Diameter 152.0 mm
Inner Diameter 105.5 mm
Length 207.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
