MicroFit MFHLP32377 Replaces the Hydac 1271554

MICROFIT MFHLP32377
MICROFIT MFHLP32377

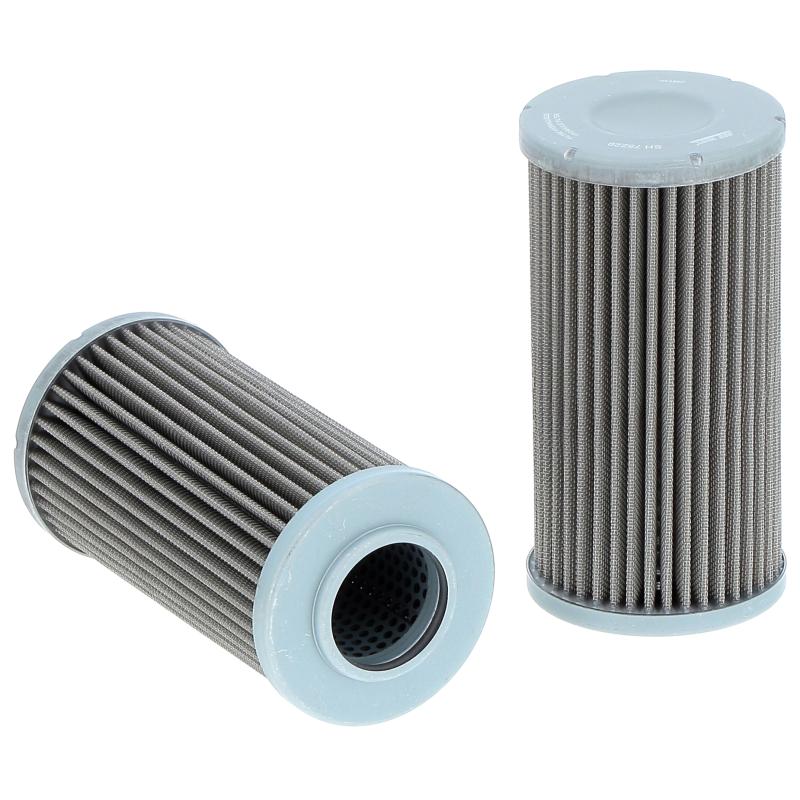

Representative product image Product image feedback

MicroFit® UltraGen III MFHLP32377 DIN Pressure Filter | Replaces the Hydac 1271554

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP32377 is the MICROFIT® approved replacement to the Hydac 1271554. Engineered and manufactured in Great Britain the MFHLP32377

Price Match
¥1,005.00
1.15 kg
0.001 m³
United Kingdom
8421.99.90
0.52 kg
0.001 m³
Italy
8421.99.90
0.52 kg
0.0017 m³
France
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP32377 is the MICROFIT® approved replacement to the Hydac 1271554. Engineered and manufactured in Great Britain the MFHLP32377

Specification

StyleDIN Pressure Filter
MediaWire Mesh
Efficiency 160µ
Outer Diameter 78.0 mm
Inner Diameter 40.5 mm
Length 157.0 mm
Δ Collapse Pressure 21 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Hydac Brand Logo

Same Fit-Form & Function

As the Genuine Hydac 1271554

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
60µ
Efficiency 2
Style DIN Pressure Filter
Outer Diameter 78.0 mm
Inner Diameter 40.5 mm
Length 157.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 21 BAR
Seal Nitrile
Temperature Range -30 - +100°C
