Summary

MicroFit MFHR50186 Replaces the Internormen 05.8400/1220010BP16

Internormen 05.8400/1220010BP16
Internormen 05.8400/1220010BP16
Verified product image Product image feedback

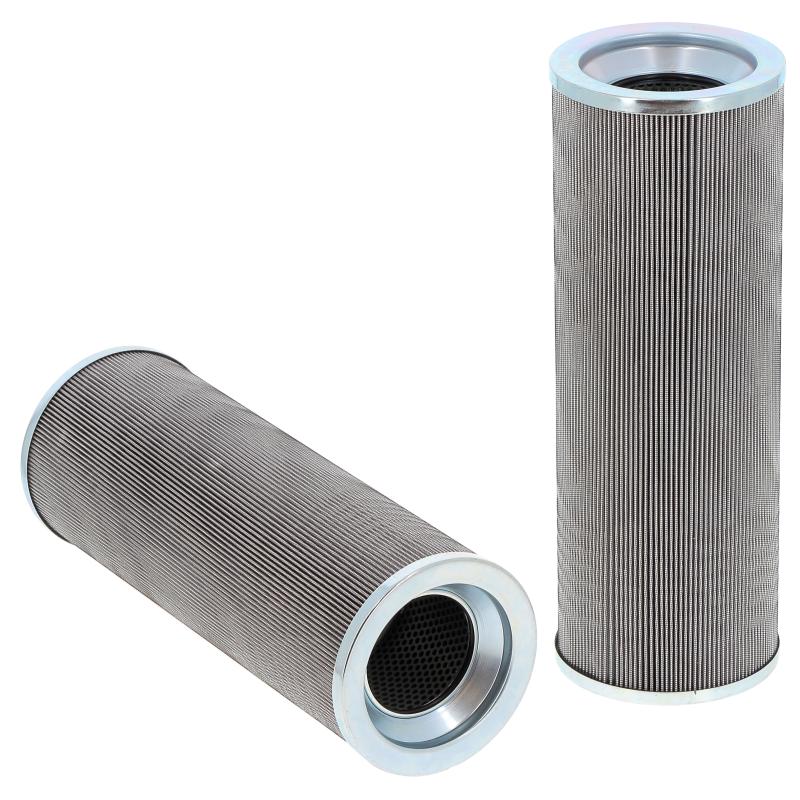

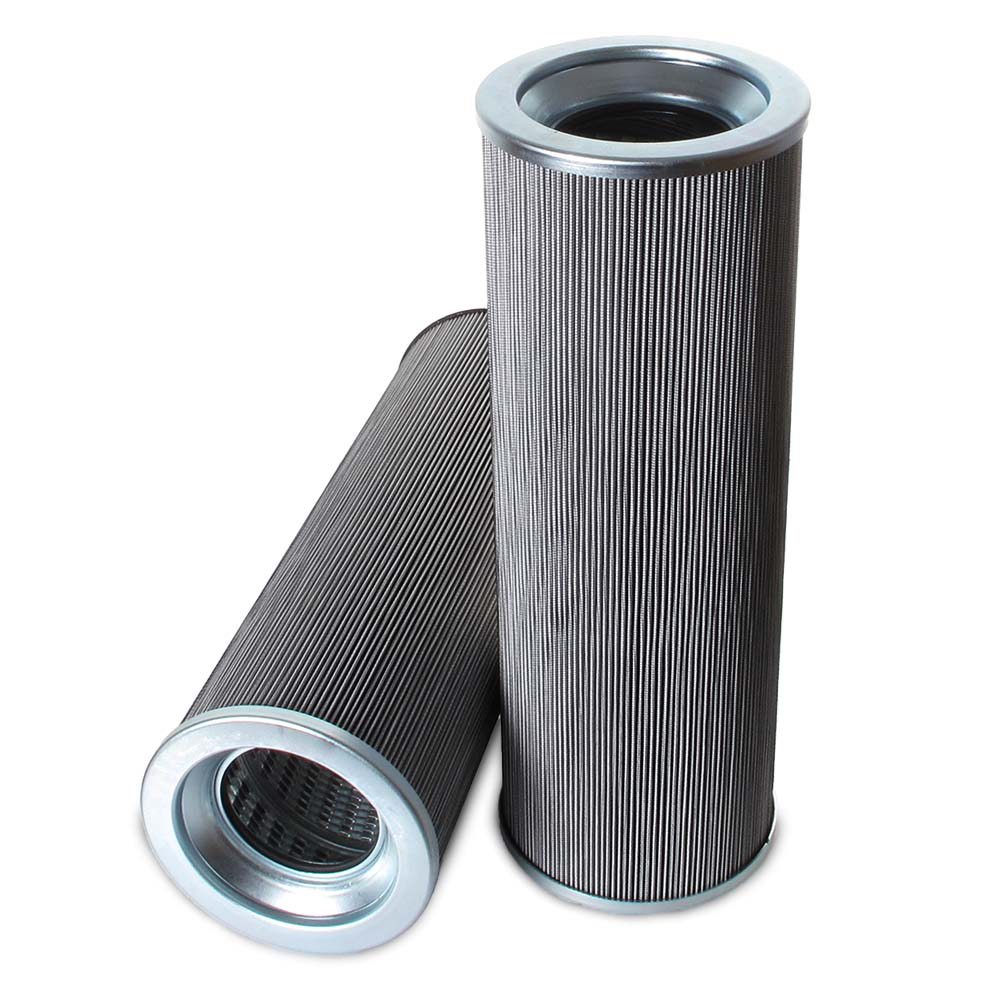

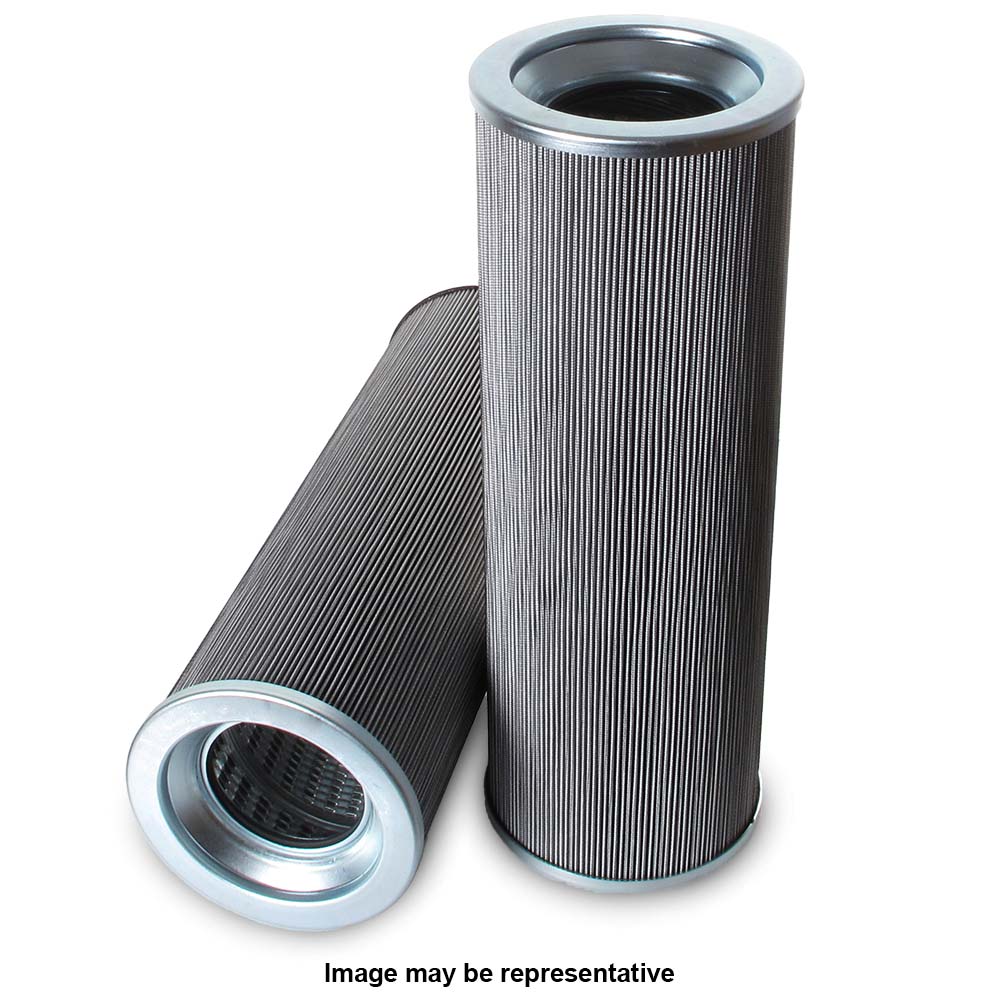

MicroFit® UltraGen III MFHR50186 Return Filter | Replaces the Internormen 05.8400/1220010BP16

Brand: MicroFit
Description

The FF200587B is our FilterFinder Approved replacement to the Internormen 05.8400/1220010BP16. Our element is designed to meet or exceed the quality and performance of the original Internormen filter, ensuring superior filtration performance and long-lasting durability.



Engineered with our glass fiber media and a durable design, the FF200587B provides reliable and consistent performance over its lifespan, even in harsh operating environments. With FilterFinder, you can trust that you are getting a reliable and high-quality replacement filter that will keep your system running smoothly.

Price Match
¥1,551.00
7.94 kg
0.0099 m³
72 pcs
United Kingdom
8421.99.90
3.54 kg
0.0151 m³
72 pcs
France
8421.99.90
3.6 kg
0.0099 m³
72 pcs
Italy
8421.99.90
2.8 kg
0.0112 m³
72 pcs
United States
8421.29.80.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR50186 is the MICROFIT® approved replacement to the Internormen 05.8400/1220010BP16. Engineered and manufactured in Great Britain the MFHR50186 is designed to meet or exceed the quality and performance of OEM quality standards, ensuring superior filtration performance and the longest possible filter life.

Building on over 50 years of filtration expertise, the UltraGen III series is the third generation of MICROFIT® filter media, delivering exceptional efficiency and reliability.

FilterFinder is an approved distributor of MICROFIT® filters. With expert product knowledge, dedicated support, and a large stock availability, FilterFinder ensures you receive the parts you need when you need them, every time.

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 152.0 mm
Inner Diameter 83.4 mm
Length 427.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Internormen Brand Logo

Same Fit-Form & Function

As the Genuine Internormen 05.8400/1220010BP16

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Return Filter
Outer Diameter 152.0 mm
Inner Diameter 83.4 mm
Length 427.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
